Aluminum Rolling Shutter Door | Aluminum Roller Shutter Door | Model SA80-3
PRODUCT DESCRIPTION High-security punched aluminum rolling shutter doors are popular for retail units, where they offer enhanced security without detracting from the look of the front.
You could benefit from the punched rolling shutter door, because it not only bring you security, as well as airflow,ventilation. We undersatnd it clearly that airflow,ventilation are extremely important for some areas such as shops, retail stores, showroom, garage and more.
APPLICATIONS: Every aluminum roller shutter door is built to your required sizes and dimensions,this type of door is designed and widely used for industrial, commercial, residential applications as following:
♦ Front door of a villa
♦ Reception counters
♦ commercial shop fronts
♦ garage
♦ Domestic properties
♦ and more
KEY FEATURES: ♦ Rust-proof. Aluminum roller shutter door is made of aluminum, which makes the door never rust, while normal galvanized steel roller shutter door is easy to get rusty.
♦ Noiseless. In between two aluminum slats, we put special long service life rubber for noise reduction. The rubber could also make the door runs more smoothly. The noise level is around GB/TI6730,Rw=20dB.
♦ Lightweight. Compared to galvanized steel rolling shutter, it's lightweight, so it's easy for transportation as well as installation.
♦ Ventilation available. The aluminum slats are punched to offer ventilation.
♦ Many color available. The natural color, white, blue, green, cream, or any other RAL color by powder coating
♦ Easy to install

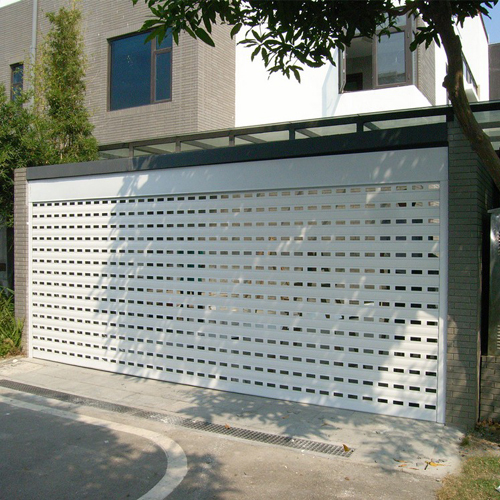

Project photos:
TECHNICAL SPECIFICATIONS
Item number
Max width
Max height
Color
Operation way
Options
SA80-3
7,200 mm
7,000 mm
any RAL color by powder coating
manual operation, motorized operation
shutter box, safety sensor, UPS, safety brake, video surveillance
Curtain:

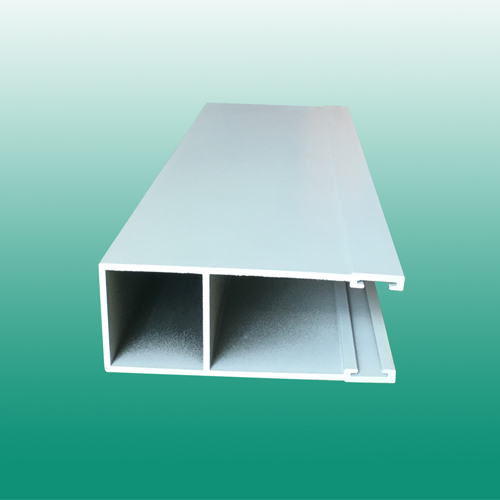

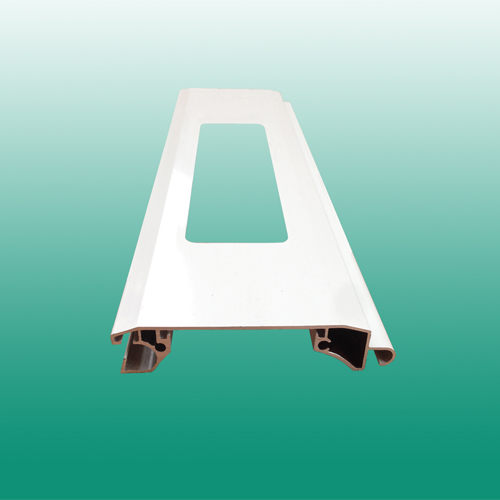

♦Material: single skinned aluminum extruded slat, with punched holes
♦Size: 80 mm width (pitch heihgt)
♦Thickness: 1.2mm / 1.0 mm
♦Color: standard color is white and cream. Any RAL color is available by powder coating at additional cost
Shaft / Axle:
♦Material: galvanized steel
♦Diameter:5 inches(side motor), 6 inches, 8 inches, 10 inches
♦Wall thickness: 1.5 mm, 2 mm, 2.5 mm, 3 mm, 4 mm
Operation way:
♦Manual operation by hand or hook (push up & push down)
♦Automatic operation with motor(remote controls, switch button)
Optional:
♦Shutter box / hood cover
♦Perforated slats, punched slats are available if needed
♦Wicket door
